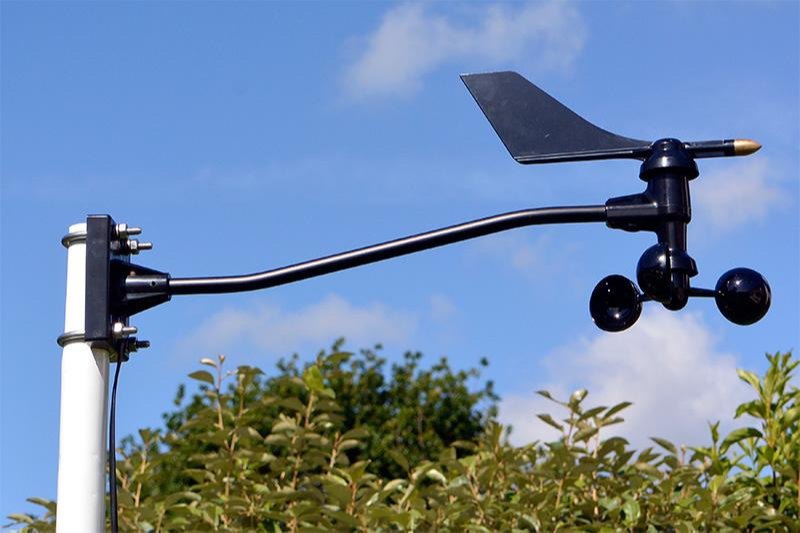

Model BKC-ANM
Wind Speed & Direction Sensor
Rugged. Accurate. Hurricane-ready.
Overview
BKC-ANM combines wind speed and wind direction sensors in one durable package. It is built with heavy-duty components designed to withstand hurricane-force winds, yet light enough to register the softest breeze. Range and accuracy are verified in a wind tunnel.
Sealed long-life bearings and integrated drip rings eliminate icing problems around moving joints.
Speed 0.5 to 89 m/s
Direction accuracy ±3°
-40 °C to +65 °C
CE certified
Specifications
Technical specifications
| Operating Temperature | -40° to +149°F (-40° to +65°C) |
|---|---|
| Wind Speed Sensor | Solid state magnetic sensor |
| Wind Direction Sensor | Wind vane and potentiometer |
| Attached Cable Length | 40' (12 m) |
| Cable Type | 4-conductor, 26 AWG |
| Connector | Modular connector (RJ-11) |
| Maximum Cable Length | 240' (73 m) |
| Wind Vane & Control Head | UV-resistant ABS plastic |
| Wind Cups | High-impact Polycarbonate |
| Anemometer Arm | Black-anodized aluminum |
| Dimensions (L x W x H) | 15.0" x 1.5" x 18.0" (381 mm x 38 mm x 457 mm) |
| Weight | 1 lbs. 4 oz. (1.332 kg) |
| Display Resolution (Direction) | 16 points (22.5°) on compass rose, 1° in numeric display |
| Accuracy (Direction) | ±3° |
| Resolution & Units (Speed) | Measured in 1 mph. Converted to nearest 1 km/h, 0.1 m/s, or 1 knot |
| Range (Speed Sensor) | 1 to 200 mph, 1 to 173 knots, 0.5 to 89 m/s, 1 to 322 km/h |
| Accuracy (Speed Sensor) | ±2 mph (2 kts, 3 km/h, 1 m/s) or ±5%, whichever is greater |
| Max Cable Length Effect | 240' (73 m) Max. Speed readings scale with length (At 140': max 135 mph; At 240': max 100 mph) |
| Wiring: Black | Speed Contact Ground |
| Wiring: Red | Ground |
| Wiring: Green | Direction Pot Wiper (20KΩ) |
| Wiring: Yellow | Supply Voltage |
| Speed Translation Formula | 1600 rev/hr = 1 mph V = P(2.25/T) (V = mph, P = pulses/sample, T = seconds) |
| Direction Translation | Variable resistance 0 - 20KΩ; 10KΩ = South (180°) |
| Certifications | CE Certified |
Note: Multiple custom models and configurations are available on request.
