Model BKC MT RS485-MB

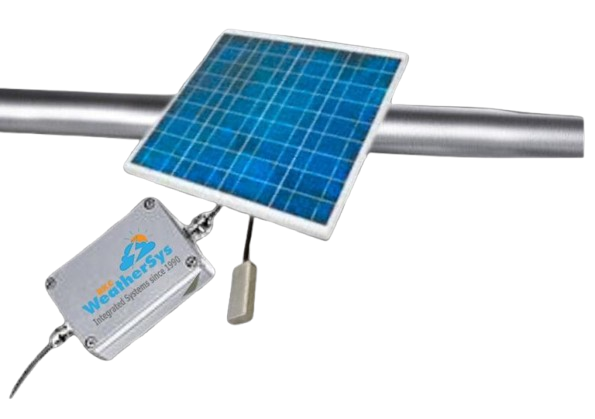

Module Temperature Sensor BKC MT RS485-MB
PV module back-of-panel temperature sensor with RS485 Modbus output.
Overview
BKC MT RS485-MB module temperature sensors measure PV panel temperature with a Pt1000 or Pt100 RTD element and report over RS485 using the Modbus RTU protocol.
They are ideal for integrating with PLCs, SCADA systems, data loggers and other industrial automation solutions in solar power plants.
Pt1000 Class A / Pt100 Class B
RS485 Modbus RTU
12 to 36 V DC
-50 °C to 120 °C
Specifications
Technical specifications
| Operating temperature | -50°C to 120°C |
|---|---|
| Sensor element | Pt1000, RTD (Resistance Temperature Detector) |
| Sensor housing | Self-adhesive aluminium block (30x12x6mm) |
| Sensor cable (Pt1000) | Teflon-coated, 3 meters |
| Case material | Powder Coated Aluminium |
| Accuracy | Class A |
| Supply Voltage | 24VDC (12 to 36VDC) |
| Interface | RS485 |
Note: Different models are available.
Variant
BKC-PT100
The specifications above are for the BKC-PT1000 variant.
| Operating temperature | -40°C to +90°C |
|---|---|
| Sensor element | Pt100, RTD (Resistance Temperature Detector) |
| Sensor housing | Self-adhesive silicone rubber Patch |
| Sensor cable (Pt100) | PTFE sheath, 4 × AWG 30, length: 2 m |
| Case material | Powder Coated Aluminium |
| Accuracy | Class B |
| Supply Voltage | 24VDC (12 to 36VDC) |
| Interface | RS485 |
